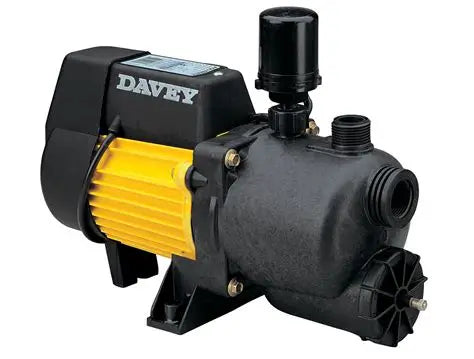

Pressure Pump Davey Aquamate

The Davey Aquamate is a compact, economical automatic household pressure system with a built‑in pressure accumulator. It’s intended for boosting water pressure in small homes, rainwater tank systems, cottages, caravans, or boating applications

It uses a jet‑assisted centrifugal design to provide higher pressure while maintaining a simple construction

• Type / Model: Aquamate 72111

• Pump Type: Single‑stage, jet-assisted centrifugal pump

• Maximum Flow Rate: 25 litres per minute (lpm)

• Cut‑in / Cut‑out Pressures:
    • Cut‑in (start) pressure: ~ 140 kPa
    • Cut‑out (stop) pressure: ~ 280 kPa

• Maximum Service Pressure / Head: ~ 31 m (maximum head)

• Operating Limits:
    • Max liquid temp: 50 °C
    • Max ambient temp: 45 °C
    • Maximum suction lift: 6 m

• Inlet / Outlet Sizes:
    • Inlet: 1″ F (female thread)
    • Outlet: 1″ M (male thread)

• Electrical / Motor:
    • Supply Voltage: 220–240 VAC (50 Hz)
    • Output Power (P2): 0.2 kW
    • Full‑load current: ~ 2.0 A
    • Locked‑rotor current: ~ 8.8 A
    • Enclosure: IP55
    • Insulation class: Class F

• Materials of Construction:
    • Impeller: Glass filled polycarbonate
    • Pump casing: Glass filled nylon / thermoplastic
    • Pump shaft: 304 stainless steel
    • Internal check valve: Delrin / stainless spring etc.
    • Seals: Ceramic / carbon / nitrile elastomer combinations

• Performance / System Draw Off:
    • System draw off (i.e. volume between pumping cycles): ~ 115 mL

• Dimensions & Weight:
    • Dimensions (mm) – see table in spec sheet: for 72111: A=390, B=280, C=172, D=131, E=200, F=195
    • Weight: ~ 7.5 kg

• Certifications / Standards:
    • AS/NZS 4020 compliant (approved for contact with drinking water)

• Warranty: 12 months (varies by region)
